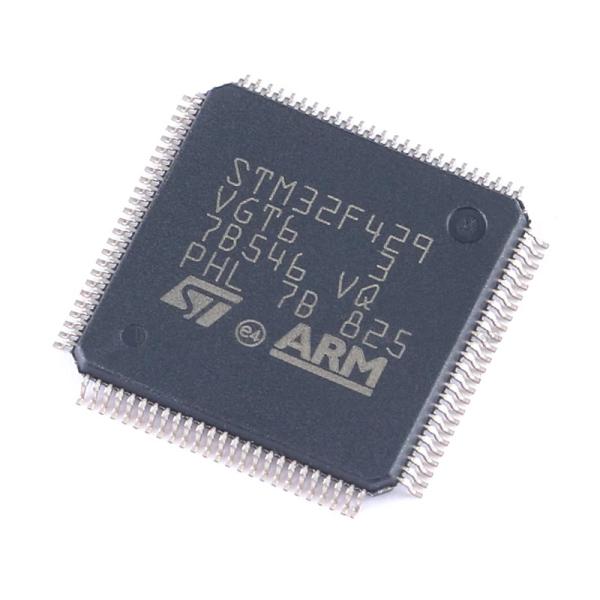

Introduction to STM32F429VGT6

The STM32F429VGT6 is a high-performance microcontroller from STMicroelectronics, designed for embedded applications that require advanced graphics processing and high-speed connectivity. It is based on the ARM Cortex-M4 core operating at up to 180 MHz, making it ideal for applications that require high processing power and real-time performance. The device features a wide range of peripherals, including high-speed communication interfaces, advanced analog peripherals, and a graphics accelerator, making it suitable for a wide range of applications.

Key Features

• ARM Cortex-M4 core operating at up to 180 MHz
• 2 MB of Flash memory
• 256 KB of SRAM
• Graphics accelerator for advanced graphics processing
• High-speed communication interfaces including Ethernet, USB, and CAN
• Advanced analog peripherals including high-resolution ADCs and DACs

Applications

The STM32F429VGT6 is suitable for a wide range of embedded applications that require advanced graphics processing and high-speed connectivity, including:

• Human-machine interfaces (HMI)
• Industrial control systems
• Medical and healthcare equipment
• Aerospace and defense systems
• Consumer electronics

Performance

The STM32F429VGT6 is designed for high performance, with an ARM Cortex-M4 core operating at up to 180 MHz. The device features 2 MB of Flash memory and 256 KB of SRAM, providing ample storage for code and data. The device also features a graphics accelerator that enables advanced graphics processing, making it suitable for applications that require high-quality displays and user interfaces.

The device includes a range of peripherals that enable developers to design more complex and feature-rich systems. For example, the device includes high-speed communication interfaces including Ethernet, USB, and CAN, as well as advanced analog peripherals including high-resolution ADCs and DACs.

Power Efficiency

The STM32F429VGT6 is designed for low power consumption, with a range of power management features that allow it to optimize energy consumption. The device includes low-power modes that allow it to consume less energy when it is not in use, and it is designed to operate at low voltages. The device also includes a range of power management features, including a low-dropout (LDO) voltage regulator and a real-time clock (RTC) with low-power modes.

Development Tools

STMicroelectronics provides a range of development tools and software for the STM32F429VGT6, including:

• STM32CubeMX software to configure the device and generate code
• STM32CubeIDE, an integrated development environment (IDE) for code development and debugging
• STM32 Nucleo and Discovery development boards for prototyping and development
• Evaluation boards for testing and evaluation

Conclusion

The STM32F429VGT6 is a high-performance microcontroller that is ideal for embedded applications that require advanced graphics processing and high-speed connectivity. Its high processing power, advanced graphics capabilities, and range of peripherals make it suitable for a wide range of applications in human-machine interfaces, industrial control systems, medical and healthcare equipment, aerospace and defense systems, and consumer electronics. STMicroelectronics provides a range of development tools and software to support developers in their design and development activities.
